Detachable Wheel Carrier for a Caterham 7

Back: Steve Marsh's Caterham page


These photos have been supplied by BigYin of BlatChat fame and hosted on my site. All questions to BigYin please!

Contact BigYin here

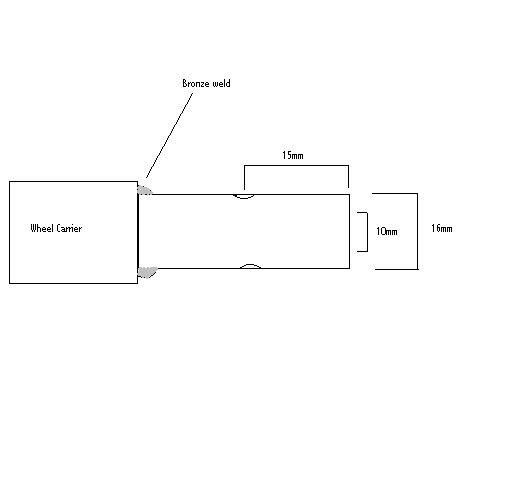

Schematic of the joint you need to make

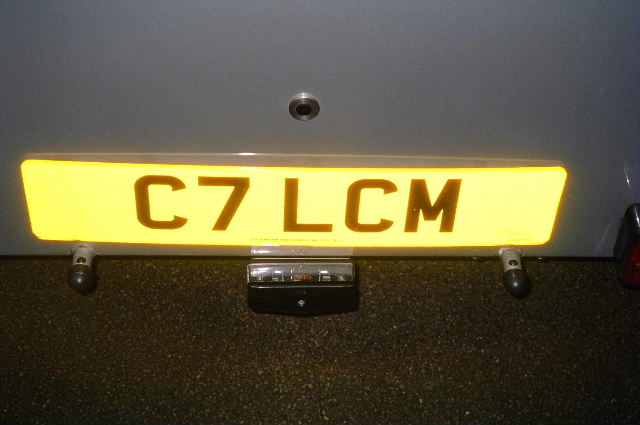

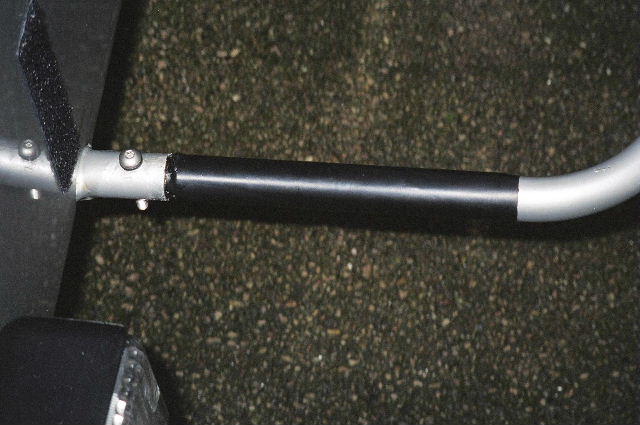

1 - stubs plugged and capped for running without spare

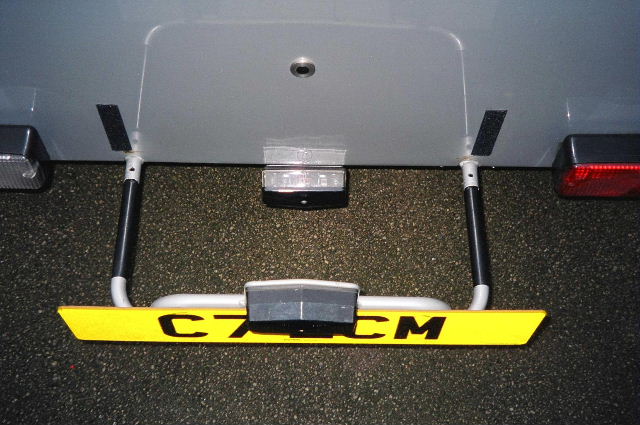

2 - 40mm stubs uncapped and ready for wheel carrier to be installed

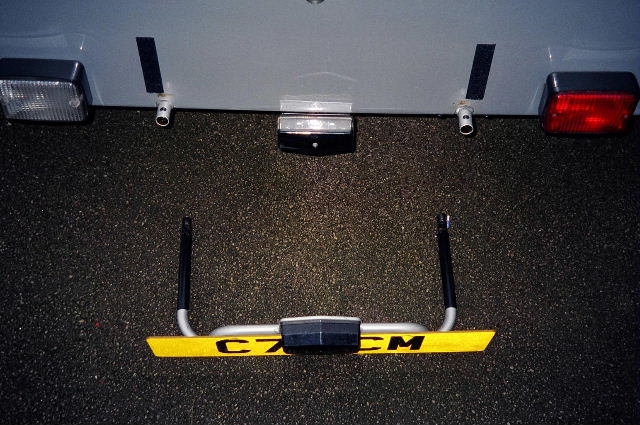

3 - wheel carrier ready to go on and number plate removed from Velcro

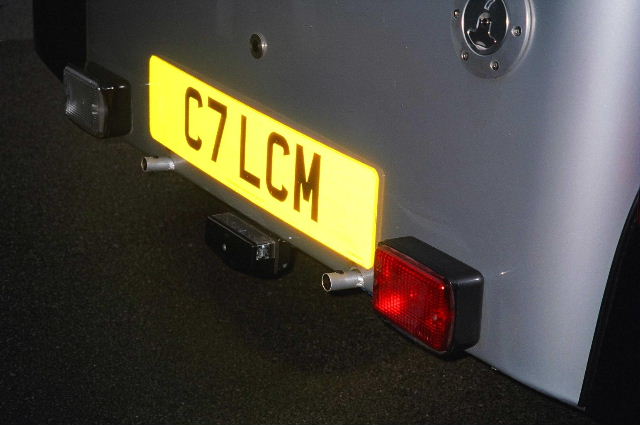

4 - wheel carrier placed in the stubs

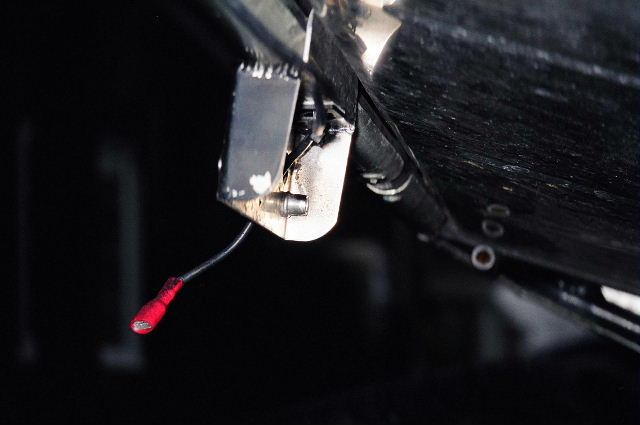

5 - off side detail showing powder coating, M5 bolt, and bullet connector ready to connect up number plate lamp

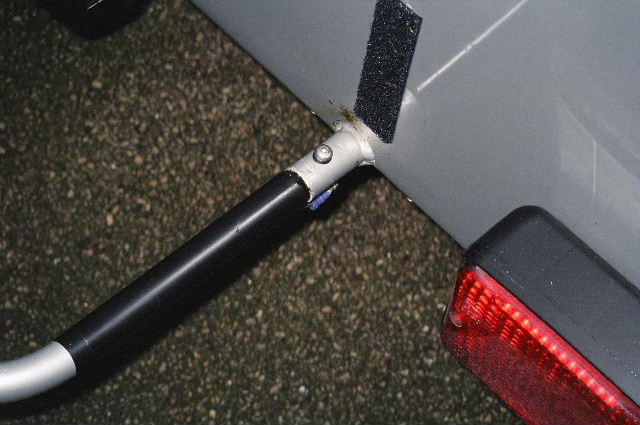

6 - near side detail

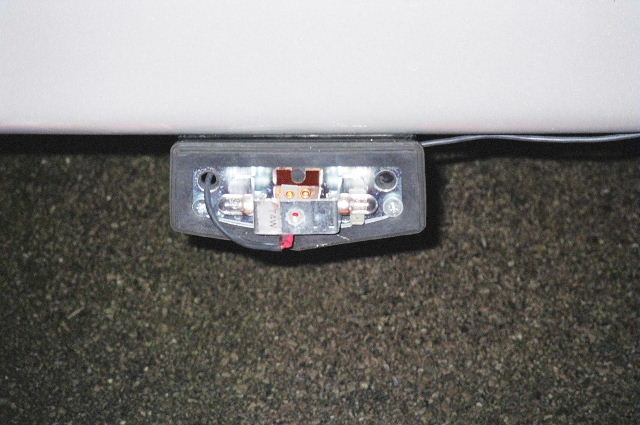

7 - cover removed from number plate light

8 - whole number plate light removed and spade connector disconnected

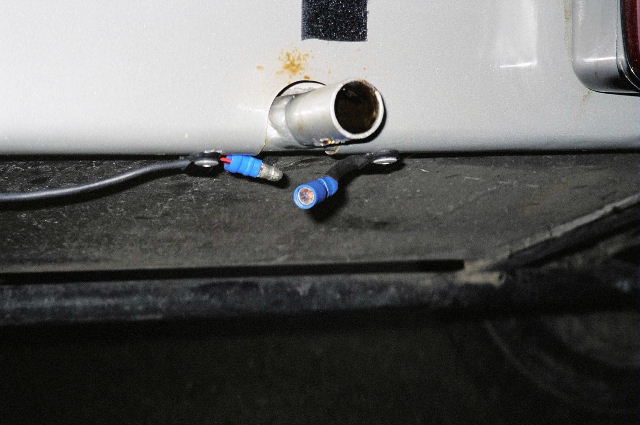

9 - o/s bullet connectors used to switch between rear panel and carrier mounted number plate lights

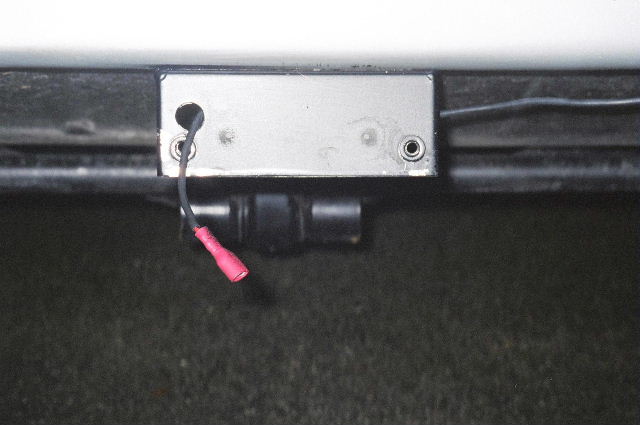

10 - chassis mounted lamp bracket showing rivnuts

11 - nearly ready to go…………

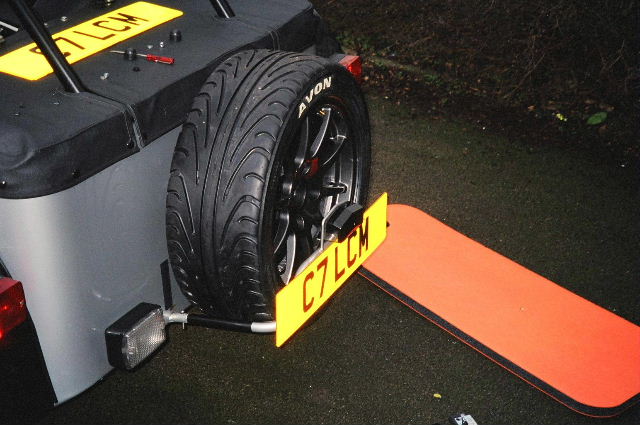

12 - finished! Brrm Brrrm!
